Quick Test Professional - The starters Guide

The Data Table has the characteristics of a Microsoft Excel spreadsheet, meaning that you can store and use data in its cells and you can also perform mathematical formulas within the cells.

A Data Table in QTP, which helps to create data driven test cases that can be used to run an Action multiple times.

Types of Data Tables:

• Local Data Table: Here the data that is available to a certain action. Each action has its own private data table also known as local data table which is can also be accessed across actions.
• Global Data Table: Here the data is available to all the actions in a test.

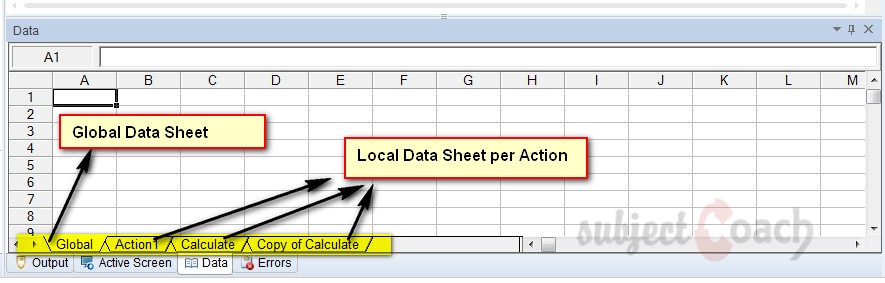

The Data sheet can be accessed from the "Data" Tab of QTP as shown below:

To execute a test case for some specified number of iterations, to set the iterations of global data table in the Test Settings dialog.

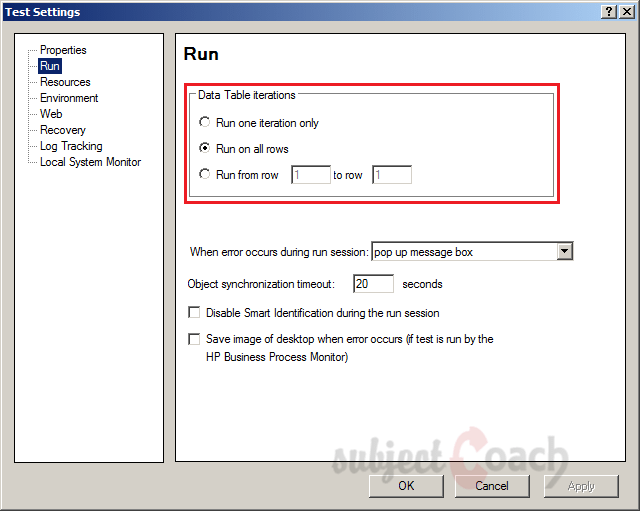

To access it: Go to File, select Settings click Run (Tab) as shown below:

Example:

The Parameters can be created as shown below. Most of the functionalities of Excel can be used in Data table as well.

Methods for Data table object:

There are three types of objects to access Data Table:

• Data Table Object Methods
• DTParameter Object Properties
• DTSheet Methods

Data Table Object Methods:

• AddSheet: Adds the specified sheet to the run-time Data Table

  Syntax: DataTable.AddSheet(SheetName)
  Ex: Datatable.AddSheet(strSheetName)


• DeleteSheet: Deletes the specified sheet from the run-time Data Table.

  Syntax: DataTable.DeleteSheet SheetID
  Ex: Datatable.DeleteSheet(strSheetName)


• Export Method: Saves a copy of the run-time Data Table in the specified location.

  Syntax: DataTable.Export(FileName)
  Ex: Datatable.Export(strExcelFile)


• ExportSheet Method: Exports a specified sheet of the run-time Data Table to the specified file.

  Syntax: DataTable.ExportSheet(FileName,SheetName)
  Ex: DataTable.ExportSheet(FileName, DTSheet)


• GetCurrentRow: Returns the current (active) row in the first sheet in the run-time Data Table (global sheet).

  Syntax: DataTable.GetCurrentRow
  Ex: row = DataTable.GetCurrentRow


• GetParameterCount Method: Returns the total number of parameters (columns) in the run-time Data Table sheet.

  Syntax: DataTable.GetParameterCount
  Ex: paramcount = DataTable.GetSheet("Test").GetParameterCount


• GetRowCount Method: Returns the total number of rows in the longest column in the run-time Data Table sheet.

  Syntax: DataTable.GetRowCount
  Ex: rowcount = DataTable.GetSheet("Test").GetRowCount


• GetSheet Method: Returns the specified sheet from the run-time Data Table.

  Syntax: DataTable.GetSheet(SheetID)
  Ex: MyParam=DataTable.GetSheet ("MySheet")


• GetSheetCount: Returns the total number of sheets in the run-time Data Table.

  Syntax: DataTable.GetSheetCount
  Ex: intSheet = datatable.getSheetCount


• Import Method: Imports the specified Microsoft Excel file to the run-time Data Table.

  Syntax: DataTable.Import(FileName)


• ImportSheetMethod: Imports a sheet of a specified file to a specified sheet in the run-time Data Table.

  Syntax: DataTable.ImportSheet(FileName, SheetSource, SheetDest)
  Ex: DataTable.ImportSheet(FileName, SheetSource, SheetDest)


• SetCurrentRow Method: Sets the specified row as the current (active) row in the run-time Data Table.

  Syntax: DataTable.SetCurrentRow(RowNumber)
  Ex: DataTable.GetSheet("MySheet").SetCurrentRow(2)


• SetNextRow Method: Sets the row after the current (active) row as the new current row in the run-time Data Table.

  Syntax: DataTable.SetNextRow
  Ex: DataTable.GetSheet("MySheet").SetNextRow

• SetPreviousRow Method: Set the focus to the row above the current active row.

  Syntax: DataTable.SetPreviousRow
  If the current active row is the first row, then it will move the focus to the last row of the DataTable.

Data Table Object Properties:

• GlobalSheet Property: Returns the first sheet in the run-time Data Table (global sheet).

  Syntax: DataTable.GlobalSheet
  Ex: DataTable.GlobalSheet.AddParameter "Name", "qtp"


• LocalSheet Property: Returns the current (active) local sheet of the run-time Data Table.

  Syntax: DataTable.LocalSheet
  Ex: DataTable.LocalSheet.AddParameter "Name", "qtp"

• RawValue Property: Retrieves the raw value of the cell

  Syntax: DataTable.RawValue ParameterID, [SheetID]

• Value Property: Retrieves the value of the cell in the specified parameter.

  Syntax: DataTable.Value(ParameterID, [SheetID])

DTParameter Object Properties:

• Name: Returns the name of the parameter in the run-time data table.

  Syntax: DTParameter.Name


• RawValue : This returns the actual value present in the cell before computing the values. Suppose we have some formula present in the cell, so this method will return the formula but not the value computed by the formula.

  Syntax: DTParameter.RawValue
  rawVal = DataTable.RawValue(ColumName, SheetNameOrId)


• Value: Retrieves or sets the value of the cell in the current (active) row of the parameter in the run-time Data Table.

  Syntax: DTParameter.Value
  Ex: DataTable.GetSheet("Action1").GetParameter("Destination").Value="Pithoragarh"


• ValueByRow: Retrieves the value of the cell in the specified row of the parameter in the run-time data table.

  Syntax: DTParameter.ValueByRow(RowNum)
  Ex: DataTable.GetSheet("Action1").GetParameter("Destination").ValueByRow(7)

DTSheet Methods:

• AddParameter: Adds the specified parameter (column) to the sheet in the run-time Data Table, sets the value of the first row to the specified value

  Syntax: DTSheet.AddParameter(ParameterName, Value)
  Ex: DataTable.GetSheet("dtGlobalSheet").AddParameter "Name","qtp"
        DataTable.AddSheet("MySheet").AddParameter("Name", "qtp")
        paramname = DataTable.LocalSheet.AddParameter("Name", "qtp").Name


• DeleteParameter Method: Delete the specified parameter from the sheet in the run-time Data Table.

  Syntax: DTSheet.DeleteParameter(ParameterID)
  Ex: DataTable.GetSheet("MySheet").DeleteParameter("Name")


• GetCurrentRow Method: Return the row number of the current (active) row in the run-time Data Table sheet.

  Syntax: DTSheet.GetCurrentRow
  Ex: row = DataTable.GetSheet("MySheet").GetCurrentRow


• GetParameter Method: Retrieve the specified parameter from the run-time Data Table sheet.

  Syntax: DTSheet.GetParameter(ParameterID)
  Ex: DataTable.GetSheet("ActionA").GetParameter("Date").RawValue


• GetParameterCount Method: Returns the total number of parameters (columns) in the run-time Data Table sheet.

  Syntax: DTSheet.GetParameterCount
  Ex: paramcount = DataTable.GetSheet("Test").GetParameterCount


• GetRowCount Method: Returns the total number of rows in the longest column in the run-time Data Table sheet.

  Syntax: DTSheet.GetRowCount
  Ex: rowcount = DataTable.GetSheet("Test").GetRowCount


• SetCurrentRow Method: Sets the specified row as the current (active) row in the run-time Data Table.

  Syntax: DataTable.SetCurrentRow(RowNumber)
  Ex: DataTable.GetSheet("MySheet").SetCurrentRow(2)


• SetNextRow Method: Sets the row after the current (active) row as the new current row in the run-time Data Table.

  Syntax: DataTable.SetNextRow
  Ex: DataTable.GetSheet("MySheet").SetNextRow


• SetPrevRow: Shifts the Focus to the Previous Row of the Data Table.

  Syntax: DTSheet.SetPrevRow
